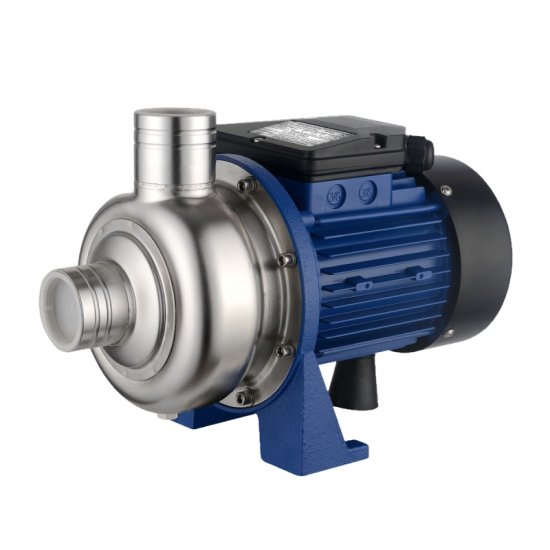

Centrifugal pump OMD3000-11

OMD 300/11 – a centrifugal surface pump with an open impeller, designed for operation with contaminated liquids containing organic particles up to 19 mm in diameter.
Applications of the OMD 300/11 Pump:


Food processing – transport of suspensions, liquids, and other media

  Air conditioning and heating systems

  Industrial bottle, jar, can, and container washing systems

  Washing of vegetables, meat, and fish

  Transport and removal of liquids in industry, agriculture, and pool systems
Advantages of the OMD 300/11 Pump

    All parts in contact with the pumped medium are made of stainless steel

    Compact and space-saving design

    Quiet and efficient operation

    Capable of pumping liquids with organic solid particles (up to Ø 19 mm)
Technical Data and Materials:

   Pumped liquid temperature: 0°C ÷ 45°C

    Ambient temperature during operation: 0°C ÷ 40°C

    Liquid pH: 6 ÷ 8

    Maximum suction depth: 7 m

    Power cable length: 0.6 m

    Maximum pressure: 1.1 bar

    Motor speed (unloaded): 2850 RPM

    Protection class: IP 22

    Power 0,8kW 230V 50Hz

    Insulation class: B
Materials:

    Pump body: stainless steel

    Impeller: stainless steel

    Pump shaft: stainless steel

    Mechanical seal: silicon
